High isolation 1510~1590 nm WDM 4 Ports fiber with 900um loose tube connector LC/UPCB Optical WDM Data Sheet..docxB Optical WDM Data Sheet.docx
specifications
| Operate wavelength | 1510~1590 nm | |
| Fiber type | SMF-28e fiber with 900um loose tube |
| Splitting ration | 10:90 |
| Main spec | IL(dB) | PDL(dB) |
| 1550nm | 1550nm |

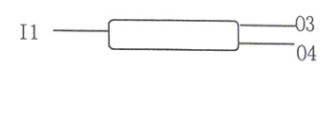

| Port1(color red) →pot3(color blue) | 10.57 | 0.03 |
| Port1(color red) →pot4(color yellow) | 0.76 | 0.04 |
| Uniformity(dB) | / | / |
| TDL(dB) | / | / |
| Return loss(dB) | ≥50 | ≥50 |
| Directivity(dB) | ≥50 | ≥50 |
| Fiber type(m) | 1 |
| connector | LC/UPC |
| Operating temperature | -40℃ to +80℃/90% |
| Storage temperature | -40℃ to +80℃/95% |
*All data were measured at central at central wavelength.
| Operate wavelength | 1510~1590 nm | |
| Fiber type | SMF-28e fiber with 900um loose tube |
| Splitting ration | 99:1 |
| Main spec | IL(dB) | PDL(dB) |
| 1550nm | 1550nm |
| Port1(color red) →pot3(color black) | 0.32 | 0.04 |
| Port1(color red) →pot4(color yellow) | 20.52 | 0.02 |
| Uniformity(dB) | / | / |
| TDL(dB) | / | / |
| Return loss(dB) | ≥50 | ≥50 |
| Directivity(dB) | ≥50 | ≥50 |
| Fiber type(m) | 1 |
| connector | LC/UPC |
| Operating temperature | -40℃ to +80℃/90% |
| Storage temperature | -40℃ to +80℃/95% |
company prolife
We are specialized in providing solutions for optical cable, packaging solutions for optical devices, and manufacturing of other electronic equipment parts. Our products are widely used in optical communication, electronics, medical care, oil pipeline, audio industrial control, radio, instrumentation and other industries.We have a good design and production team to provide customers with high-quality, reliable and efficient products.
In the process of cooperation, our innovation and service awareness are well received by our customers.
The company specializes in the production of optical communication equipment, optical devices, optical jumpers, distribution boxes, distribution frame.Our company
1.Machinery department: provide precision machinery processing, sheet metal parts processing, plastic injection molding processing, processing and manufacturing supporting various parts.
2. Optical communication department: provide customized processing of optical devices such as optical jumper, optical module, optical switch, wave divider, attenuator adapter, coupler, optical splitter, circulator, isolator, collimator, optical amplifier, etc.
- Packaging & Shipping
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What certificate we have?
A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
Q: What is your delivery date?
A: The delivery date is approximately 3-5days, depending on the order quantity.
.
