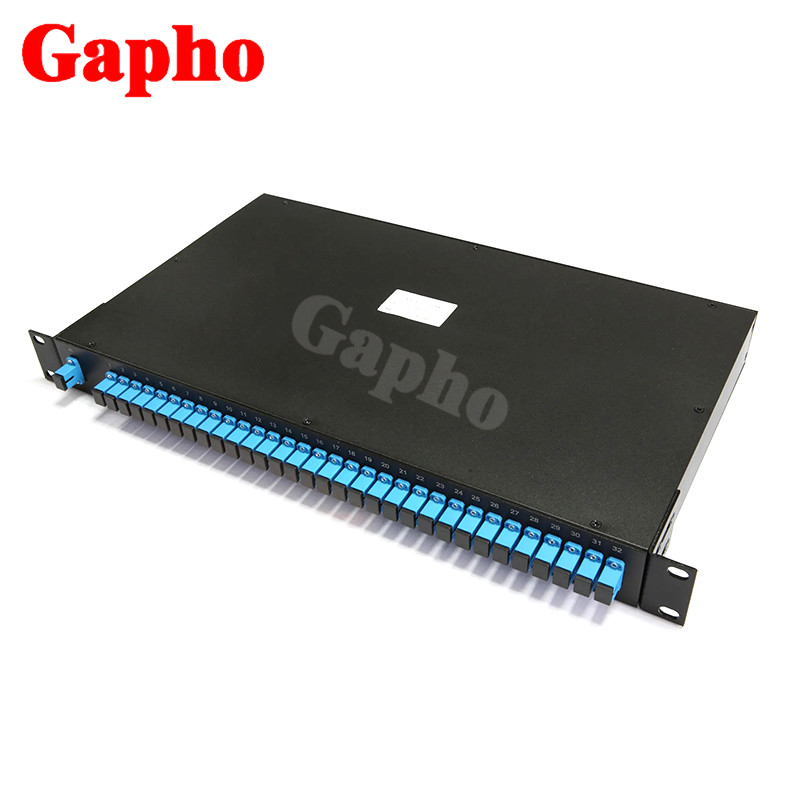

rack type optical fiber splitter PLC splitter 1260~1650 nm wavelength 1x8 1x32 1x64 FTTH PON CATV
Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.
Application
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
specification
| Parameter | Unit | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 |
| | Premium Grade |
| Insertion Loss at 23°C | Typ. | dB | 3.9 | 6.8 | 9.3 | 10 | 12.1 | 13.2 | 16.5 | 20 |
| Max | dB | 4 | 7 | 9.6 | 10.4 | 12.6 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1 | 1 | 1.6 | 1.6 | 1.6 | 2 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| | Standard Grade |
| Insertion Loss at 23°C | Typ. | dB | 4 | 7 | 9.5 | 10.4 | 12.4 | 13.6 | 17 | 20.5 |
| Max | dB | 4.2 | 7.3 | 10 | 10.6 | 12.8 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1 | 1 | 1 | 1.4 | 1.6 | 2 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.3 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | Min | dB | 55 (Premium Grade)/50 (Standard Grade) |
| Directivity | Min | dB | 55 |
| Operation Wavelength | nm | 1260~1650 |
| Operation Temperature | °C | -4-~+85 |
| Storage Temperature | °C | -4-~+85 |
| Fiber Type | - | G.657A or Customized |
company prolife
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
FAQ
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:When our company be established?
A: We started from year 2013
Q: Can you provide samples for customers?
A: Yes, but the shipping will be charged on the customer's account.
