Single Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without Connector

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

Single Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without Connector

Brand Name : GaPho

Model Number : Fiber Optical Isolator

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

Central Wavelength : 1310/1550

Operating Wavelength Range : λ±15

Typ. Peak Isolation : 38

Min. Return Loss : 60/55

Fiber Type : SMF-28e

Max. Optical Power (CW) : 500

Contact Now

low insertion loss polarization insenstive isolator 1310/1550 nm single mode fiber without connector

Features

  • Low Insertion Loss
  • high Isolation
  • Highly Stable and Reliable

Applications

  • Fiber Lasers & EDFAs
  • Local Area Network(LAN)
  • Fiber Sensors
  • Telecommunications

Specification

Parameters Unit Single Stage Dual Stage
Premium A Grade Premium A Grade
Central Wavelength nm 1310/1550
Operating Wavelength Range nm λ±15 λ±20
Typ. Peak Isolation dB 38 35 55 52
Min. Isolation at CWL (at 25℃) dB 32 30 45 42
Max. PDL (at 25 ℃) dB 0.10 0.15 0.15 0.20
Typ. Insertion Loss (at 25 ℃) dB 0.50 0.55 0.70 0.75
Max. Insertion Loss (at 0~70℃) dB 0.55 0.60 0.75 0.80
Min. Return Loss dB 60/55 60/55
Fiber Type / SMF-28e
Tensile Load N 5
Max. Optical Power (CW) mW 500
Operation Temperature ℃ 0 ~ +70
Storage Temperature Range ℃ -40 ~ +85

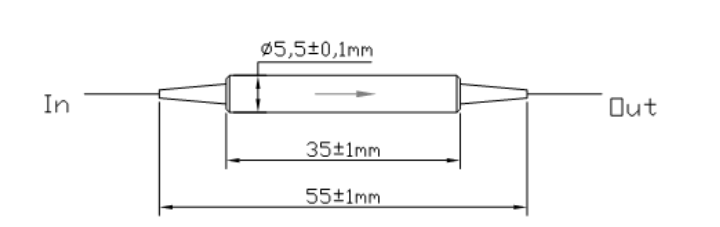

Package Dimensions:
Single Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without Connector

Single Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without ConnectorSingle Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without ConnectorSingle Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without ConnectorSingle Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without ConnectorSingle Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without ConnectorSingle Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without Connector

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q:When our company be established?

A: We started from year 2013

Q: Can you provide samples for customers?

A: Yes, but the shipping will be charged on the customer's account.

Q:Do you offer OEM services?

A: We accept OEM, ODM. Cable sizes and materials can be customized.

Single Mode Fiber Polarization Insensitive Isolator 1310 / 1550nm Without Connector
