TAP PD Link Monitoring Optical DWDM Switch With Low Additional Loss ROHS

Name: TAP PD Link Monitoring Optical DWDM Switch With Low Additional Loss ROHS
Brand: GAPHO
Price: 1 USD

TAP PD Link Monitoring Optical DWDM Switch With Low Additional Loss ROHS Manufactures

Brand Name : GAPHO

Model Number : TAP_PD

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

brand name : GAPHO

place of origin : ShenZhen.China

type : TAP PD

feature : Low additional loss, high reliability

application : light switch

Operating wavelength : 1360-1620

Storage Temperature : -40 -85 ℃

Operating Temperature : 0-70 ℃

Contact Now

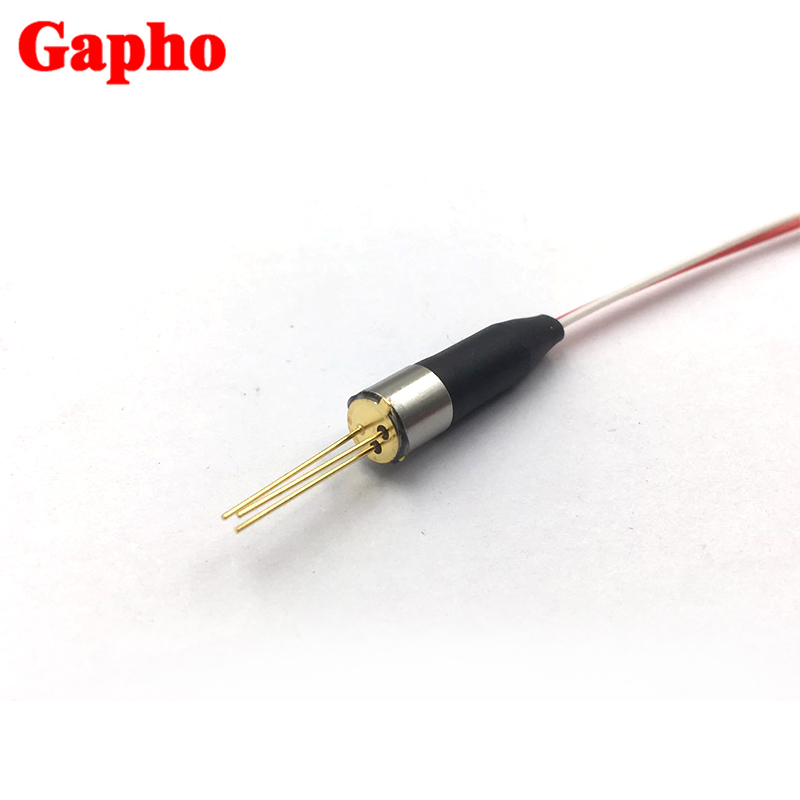

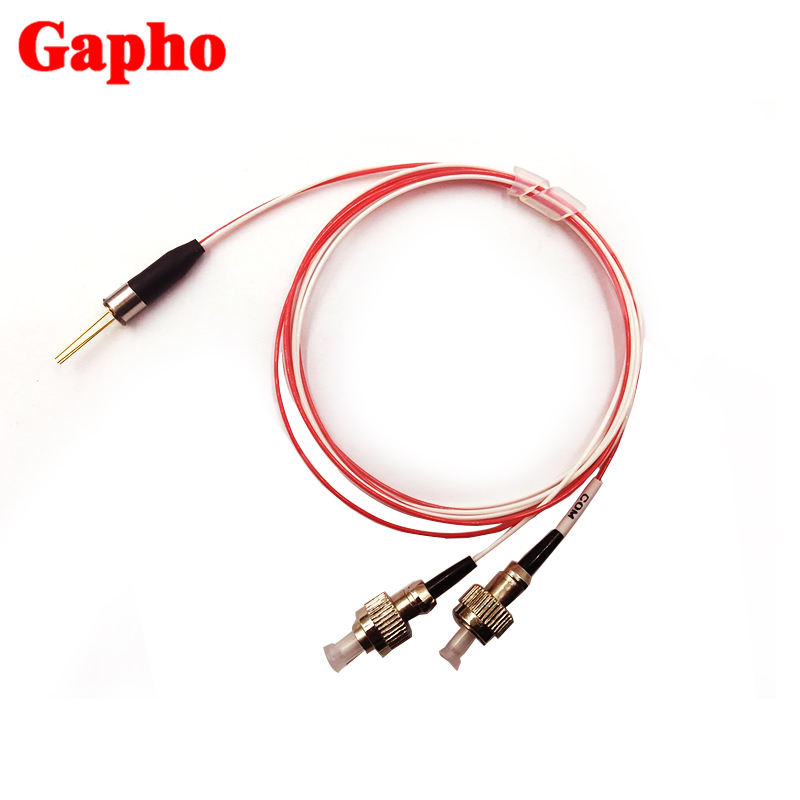

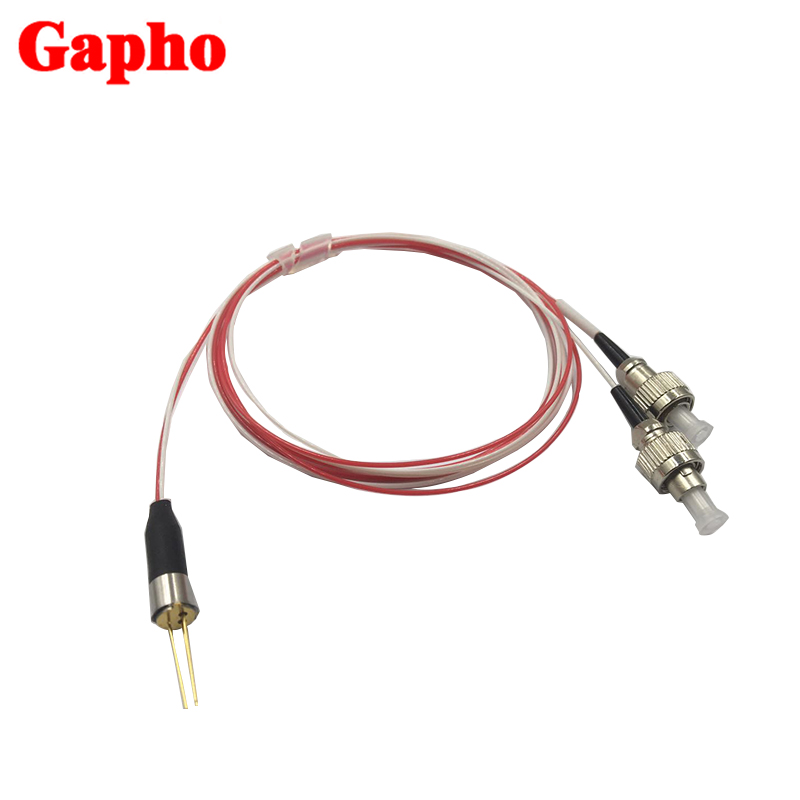

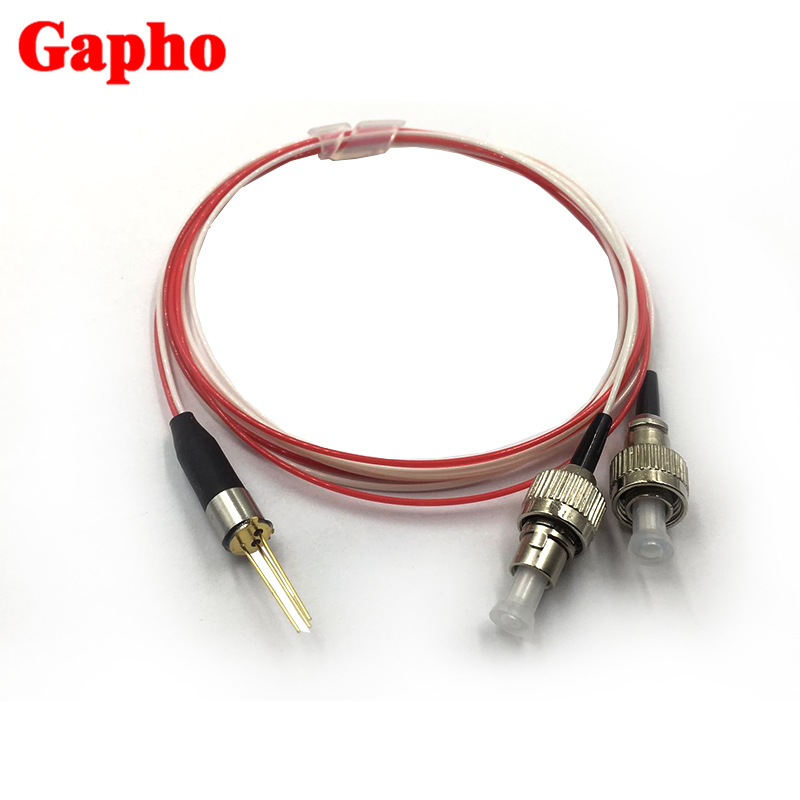

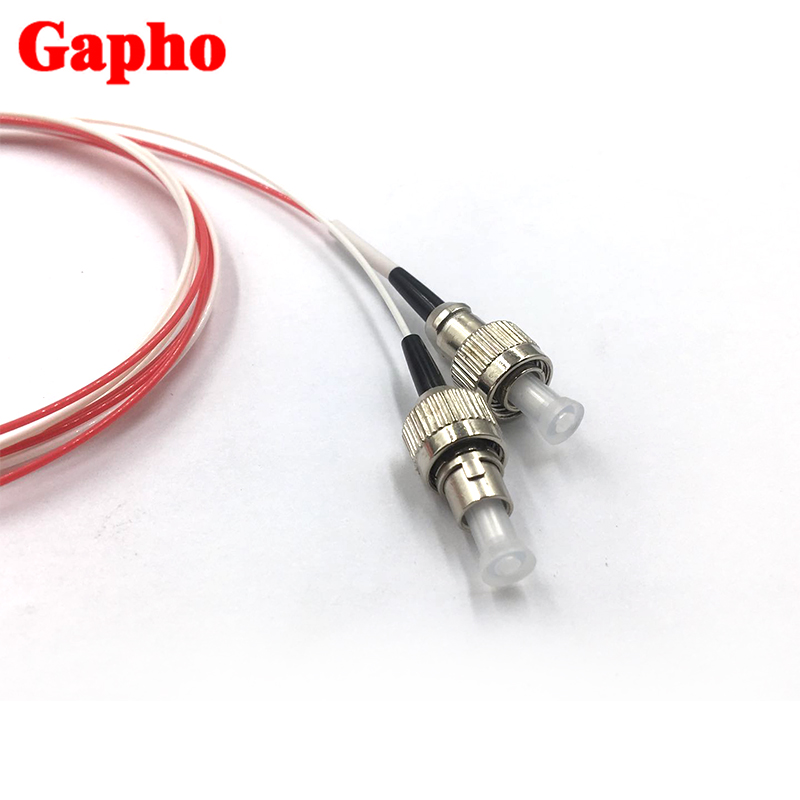

TAP PD (Spectral Detector)

Product Description

TAP PD (Spectral Detector) adopts a double-core pigtail structure, which is split through a beam splitter, a certain proportion of the light is coupled to the photodetector, and the rest of the light is reflected to another fiber.

Features

Low additional loss, high reliability
Arbitrary split ratio.

Applications

DWDM link monitoring
EDFA light output monitoring
light switch
Optical Communication Measurement Equipment

TAP PD Link Monitoring Optical DWDM Switch With Low Additional Loss ROHS

optical and electrical performance

Parameter	Symbol	Unit	Parameter value			Notes
Operating wavelength	λ	nm	1260		1620	wavelength optional
			1530		1570	C-band
TAP Ratio		%	1	2	10	other ratios
Responsivty	R	mA/W	8.5	17	80	Corresponding Responsiveness
Return Loss	RIL	dB	0.3	0.45	1.0	Corresponding loss
Temperature characteristic TDL	T	dB/℃			0.02
Polarization Dependent Loss PDL		dB			0.2
Dark Current	Id	nA			1
Return Loss	RL	dB	40	-	-

storage and working conditions

Absolute Maximum Ratings (Tc=25℃, unless otherwise noted

Parameter	Symbol	Min.	Max.	Unit
Storage Temperature	Tstg	-40	85	℃
Operating Temperature	Topr	0	70	℃
Lead Soldering (Temperature)/(Time)	---	---	260/10	℃/Sec

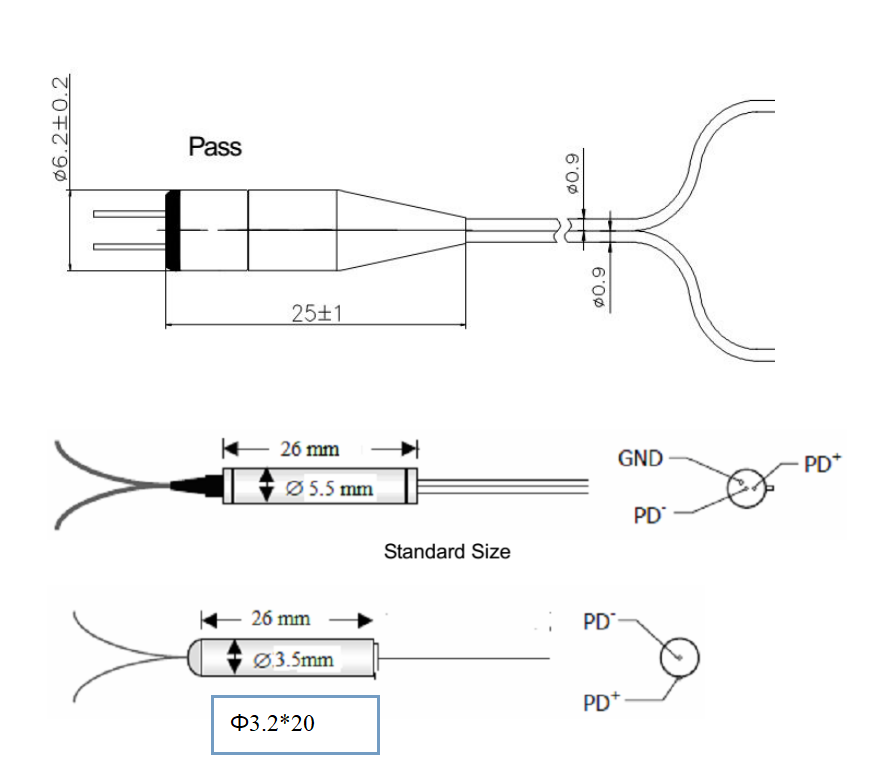

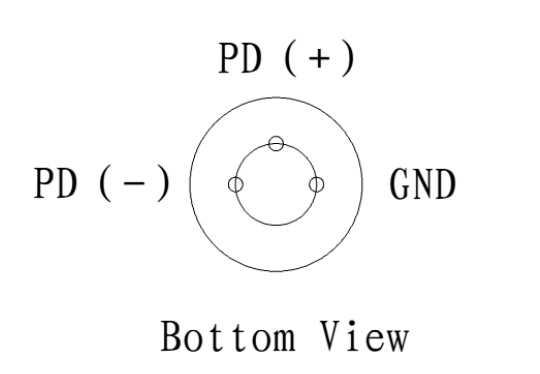

Structure diagram: (can be customized according to customer requirements)
