4Ch CWDM China factory multi-function centre wavelength 1490 nm Demux
B 4Ch CWDM Mux+Demux Module.docx
| | Document Name: CWDM Mux+Demux Module | SPEC# | SP-WDM-00XXX |
| Reversion | 01 |
| Product Name | DTL PN | Customer PN | Product Description |
| CWDM Mux+Demux Module | CWDMXC131020110 | | 4Ch CWDM Mux+Demux Module , Starting wavelength 1310,Dimensions |
Performance Specification
| Parameter | Unit | Value |
| Operating Wavelength | nm | 1260~1620 |
| Centre Wavelength | nm | 1490,1530 |
| Insertion Loss | - | - | Mux | Demux |
| 1% Port | nm | 24 | 24 |
| CWDM Port | nm | 2.5 |
| Adjacent Channel Isolation | dB | ≥30 |
| Non-Adjacent Channel Isolation | dB | ≥40 |
| EXP Port Isolation | dB | ≥15 |
| Ripple | dB | ≤0.50 |
| PDL | dB | ≤0.30 |
| PMD | ps | ≤0.20 |
| Return loss | dB | ≥50 |
| Directivity | dB | ≥50 |
| Power handling | mW | ≤300 |
| Operating temperature | °C | -10 ~ +70 |
| Storage temperature | °C | -40~ +85 |
| Fiber Type | - | Corning SMF-28e ultra fiber |
| Connector Type | - | Customer specified |
| Pigtail type | | 0.9mm white loose tube |
| Pigtail length | m | 0.5-0.6M |
| Dimensions | mm | L100xW80xH10(ABS) |

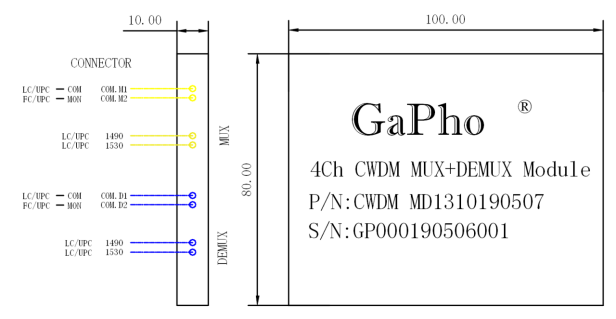

Dimension drawing(mm)

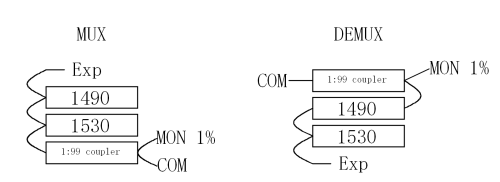

Structure diagram
package&shipping
According to the customer's requirement
The quotation of this product does not bear transportation costs
We can provide packing according to customer's requirement, quantity, weight and volume.
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
company profile
Shehong Jiangfan Technology Co., Ltd. mainly serves mid-to-high-end scientific research units and production enterprises,
Provide order customization, product development, production OEM, proofing, wholesale. Specialist in retail marketing
business services. The company takes "focusing on quality, serving with heart" as its core value, and hopes that through our professional
Level and unremitting efforts to reshape the quality image of SMEs. Always adhering to the core of user needs,
While focusing on the development of surrounding markets, it provides factory supply services for more than 1,000 small and medium-sized enterprises.
The quality and attentive service has won the trust and praise of many enterprises, and gradually established a public company in the surrounding areas.
Company good brand. We believe that through our continuous efforts and pursuits, we will be able to achieve
Mutual benefit and win-win for small businesses! The company not only provides professional integrated services, but also establishes a complete
A good after-sales service system can provide help for the problems and difficulties encountered in the development of the enterprise.
FAQ
Q:What is your order quantity?
A: usually 1 piece, if you have detailed requirements, we can coordinate.
Q: What is your delivery date?
A: The delivery date is approximately 3-5days, depending on the order quantity.
Q: Can you provide samples for customers?
A: Yes, but the shipping will be charged on the customer's account.
Q: What is your price?
A: We offer competitive price with good performance.
Q:Do you offer OEM services?
A: We accept OEM, ODM. Cable sizes and materials can be customized.
