Name: Optical Passive DWDM Multiplexer Wide Pass Band Compact Size
Brand: GaPho
Price: 1 USD

Brand Name : GaPho

Model Number : Optical passive

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Add/Drop Channel Ripple（dB） : <0.3

Directivity（dB） : >50

Return Loss（dB） : >45

Opterating Temperature(℃) : -10~+75

Contact Now

DWDM Module WDM Module Optical Passive

DWDM Module is combined the DWDM device in the box.And DWDM module has been widely used in CATV,FTTH etc.

◇Features:
 Low Insertion Loss
 Wide Pass Band
 High Stability, High Reliability
 Low PDL, Compact size

◇ Application:
 CWDM Network
 FTTX Systems
 Security &Protection System
 CATV Fiber optic System

◇ Specifications:

Parameter		4 Channel		8 Channel
		Add	Drop	Add	Drop
Channel Wavelength(nm)		ITU Grid
Channel Spacing(GHz)		100/200
Channel Passband (@-0.5dB bandwidth)(nm)		>0.22(100G)/>0.5(200G)
Insertion Loss(dB)	In---Drop@drop	2		3.2
	Add---Out@add	2		3.2
	In---Out@other	2.5		5
Add/Drop Channel Ripple(dB)		<0.3
Isolation(dB)	Adjacent	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity(dB/℃)		<0.005
Wavelength Temperature Shifting(nm/℃)		<0.002
Polarization Dependent Loss(dB)		<0.1
Polarization Mode Dispersion(ps)		<0.1
Directivity(dB)		>50
Return Loss(dB)		>45
Maximum Power Handling(mW)		300
Opterating Temperature(℃)		-10~+75
Storage Temperature(℃)		-40~+85

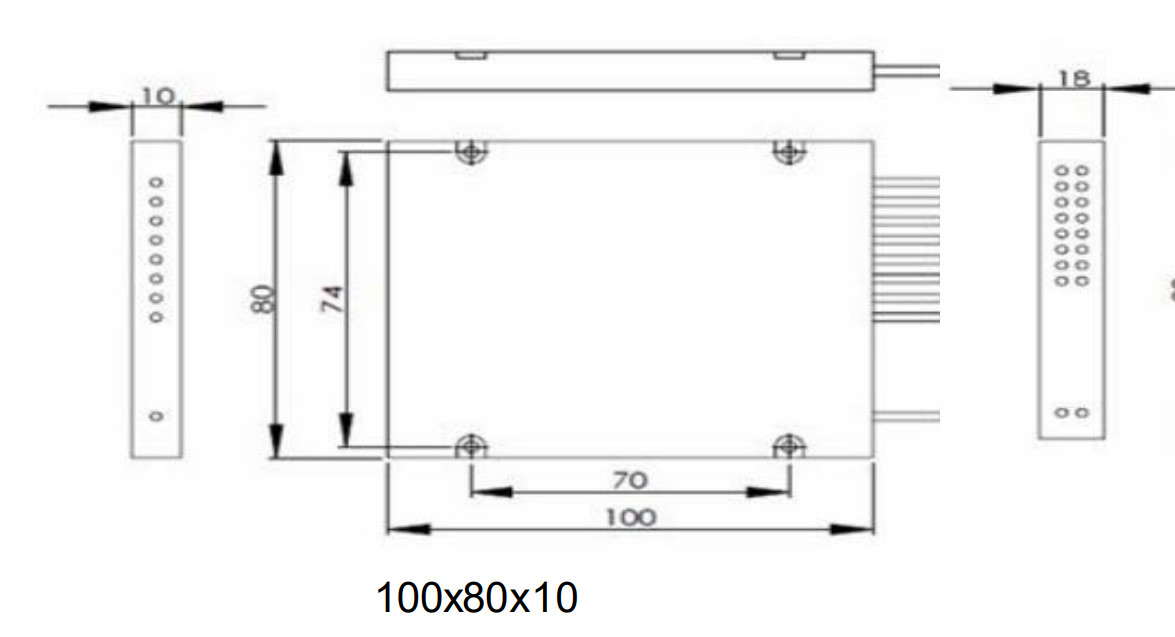

Package dimension(mm)		A: L100×W80×H10
		L120×W80×H18
		L141×W115×H18
		LGX Module
		19 ,1U Rack

◇ Ordering information:

Configuration	Channel	Channel Wavelength	Pigtail TypeFiber Type		Length	Dimensio(mm)	Connector
M=Mux DM=Demux	2-1x2 4-1x4 …. X=specify	21-21Ch 22-22Ch ...... 60-60Ch	250-250um Bare fiber 900-900um Loose tube 2000-2mm Loose tube 3000-3mm Loose tube	1=SMF-28e	1=1M 2=2M …... x=specify	1=L100 x W80 xH10 2=L120xW80xH18 3=L140xW115xH18 4=19 1U Rack x=specify	NE-None FC/APC/UPC SC/APC/UPC LC/APC/UPC XX=Other
