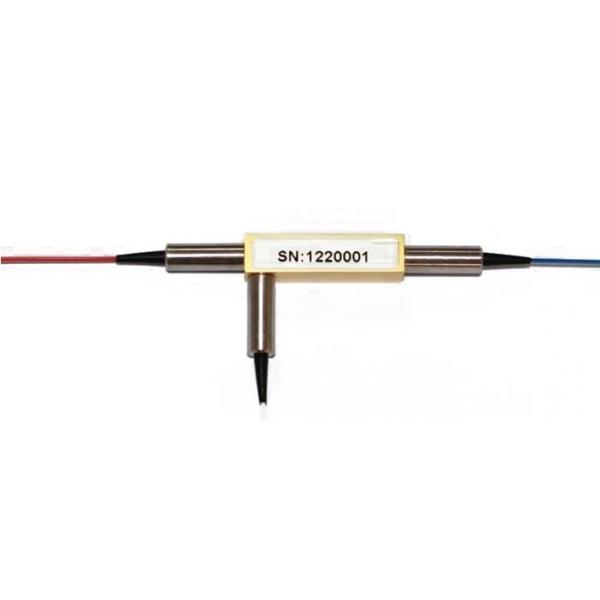

1064nm Polarization Insensitive Optical Fiber Circulator High Isolation

  • 1
  • 2

Brand Name : GaPho

Model Number : Optical Fiber Circulator

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Operating wavelength (nm) : 1064

Return loss (dB) : 50

Operating temperature : 0 ~ +50

Product name : Optical Fiber Circulator

Contact Now

Optical Fiber Circulator 1064nm Polarization Insensitive Optical Circulator

Features

High isolation & High Return Loss
Low insertion loss & PDL

Optical Path Epoxy Free

Application

Fiber optical Amplifier

Fiber Laser

Specifications

Parameter Value
Operating wavelength (nm) 1064
Bandwidth(nm) 5 10 20 30
Isolation(dB) 25 23 20 20
Insertion Loss@Band,23 2.1 2.6 3.2 3.8
PDL (dB) 0.2
Return loss (dB) 50
Cross Talk (dB) 45
Power handling (mW) 300
Fiber Type HI1060
Operating temperature 0 ~ +50
Storage temperature -40 ~ +85

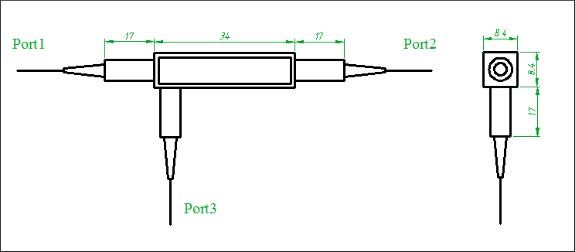

Dimensions (mm) 34x8.4x8.4(P1)

*Above specifications are for devices without the connectors.

*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower

1064nm Polarization Insensitive Optical Fiber Circulator High Isolation

Ordering Information

FCIR Wavelength Bandwidth 0 Package Pigtail Type Length Connector
FCIR 1064=1064nm

5=5nm

1=10nm

2=20nm

3=30nm

 0 1=P1 34x8.4x8.4

1=250um

bare fiber

2=900um

loose tube

3=3mm

loose tube

4=2mm

loose tube

S=Specify

H=0.5m

8=0.8m

1=1.0m

5=1.5m

2=2.0m

3=3.0m

4=4.0m

A=2.5m

B=5.0m

S=Specify

0=None

1=FC/UPC

2=FC/APC

3=SC/APC

4=SC/UPC

5=MU

6=LC/UPC

7=LC/APC

S=Specify
