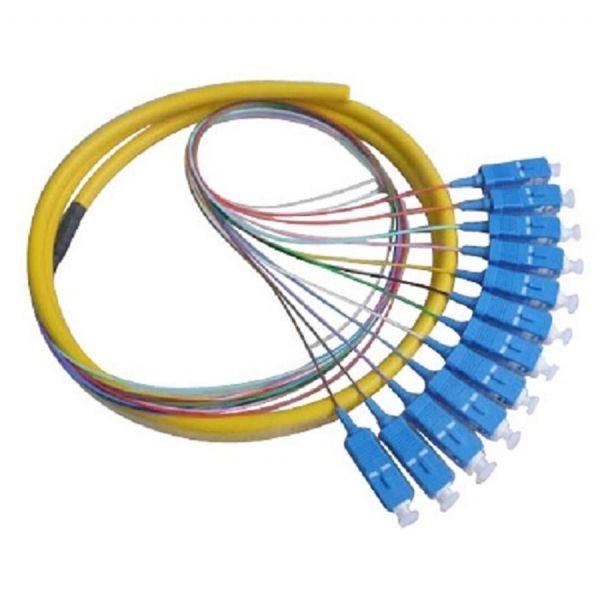

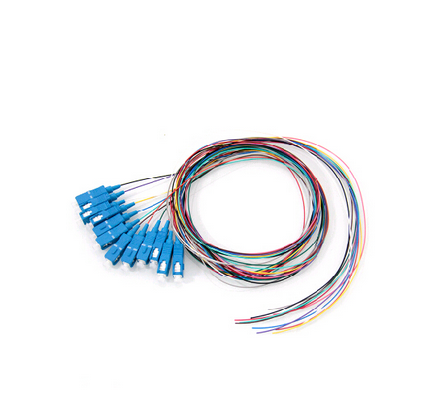

SC/UPC 12 fibers fanout fiber optic pigtail single mode mono mode optical pigtail 1.5m
Product Description
Professional manufactory of FC Fiber bundle/fiber pigtail
100% tested before delivery
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
Optional:
1. FC, SC, ST, LC
2.4.6.8.12.24.48 Cores Optional
3. SM or MM
4.0.9mm or 2.0mm
Features:
4, 6, 8, 12, 24, 48 fibers optional
With a fan out kit at the junction of fibers
The fiber is flat type.
Applicable connector: FC, SC, ST, LC
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm
Applications:
1. Telecommunications or Data communications.
2. Computer networks.
3. CATV networks.
4. Offshore, Power Generation, Oil & Gas.
5. Railways.
6. Active device termination.
7. Instrumentation.
8. Optical communication networks
9. Test equipment
| Parameter | Unit | Ribbon multi-fiber connector |
| SM |
| PC | UPC | APC |
| Insertion loss (typical) | dB | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 |
| Return loss | dB | ≥ 45 | ≥ 50 | ≥ 60 |
| Operating wavelength | nm | 1310, 1510 |
| Exchangeability | dB | ≤ 0.2 |
| Vibration | dB | ≤ 0.2 |
| Operating temperature | ° C | -40~75 |
| Storage temperature | ° C | -45~85 |
| Cord diameter | mm | φ 3.0, φ 2.0, φ 0.9 |
| Fiber count | F | 4, 6, 8, 12, 24, … fibers |
| Applicable connector | | FC, SC, ST, MU, LC |
FQA
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference
